Populate Hardware

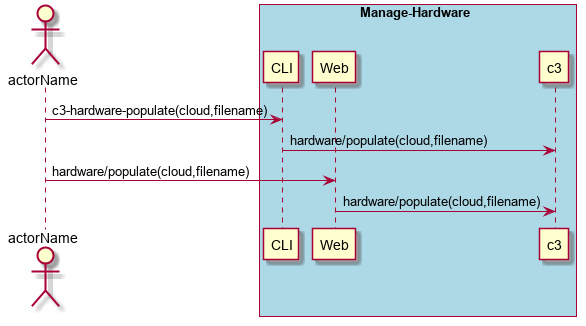

Populate Hardware using CLI and Web Interface with … <parameters>

../../_images/Populate-Hardware.png

CLI

This is an example of a command line interface for the user to interact with the system.

# c3 hardware populate --cloud <string> --filename <yaml file>
# c3 hardware populate --cloud myCloud --filename hardware.yaml

Web Interface(Mock-up)

Mock up web interface for the scenario.

../../_images/Populate-HardwareWeb.png

REST

This is an example of the RESTful interface for the scenario.

hardware/populate

Name Value Description
cloud string Name of the cloud to populate hardware on.
filename filename file with the hardware yaml format

** hardware ymal file format **

This is the yaml file format for the hardware specification

hardware:
  <name>:
    type: <hardware type>
    capacity: <number>

This is an example yaml file to install 3 compute nodes, 2 storage (100 TB each) and 1 network.

hardware:
  host1:
    type: compute
    capacity: 28
  host2:
    type: compute
    capacity: 28
  host3:
    type: compute
    capacity: 28
  store1:
    type: storage
    capacity: 100
  store2:
    type: storage
    capacity: 100
  network1:
    type: network
    capacity: 254
