Cloud Broker

Cloud Broker is responsible for allocating resources on the Clouds attached to C3. Based of policies it will select the “right” cloud or clouds for the application to run. This can include selecting multiple clouds for complex hybrid cloud workloads. It is the main interface to the SDI Public and Private clouds. Including VMWare, Containers, OpenStack, AWS, Google Cloud, etc…

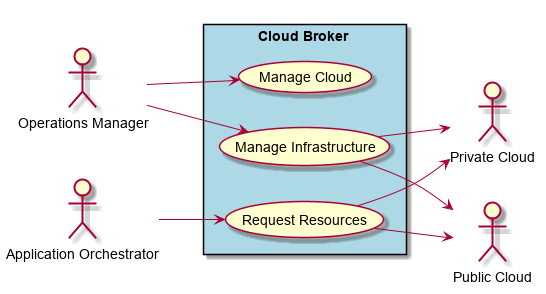

Uses

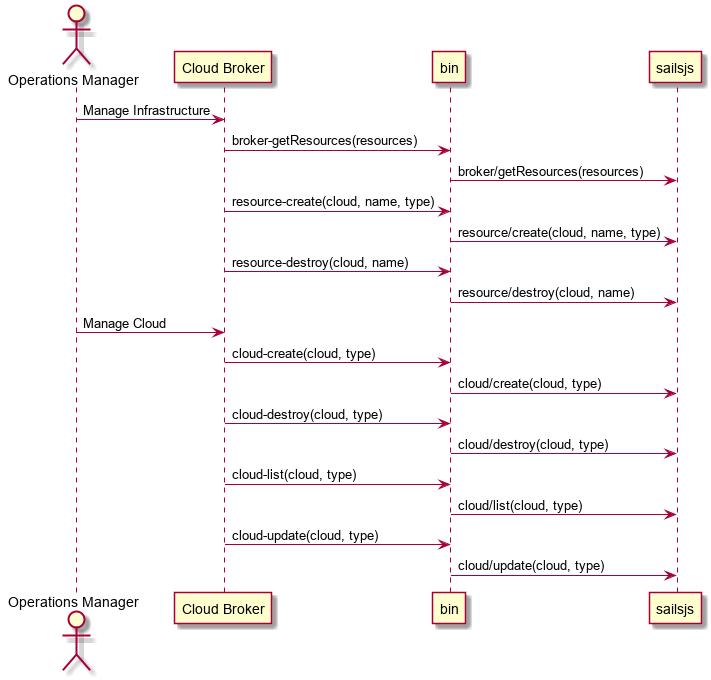

Interface

  • CLI - Command Line Interface
  • REST-API -
  • Portal - Web Portal

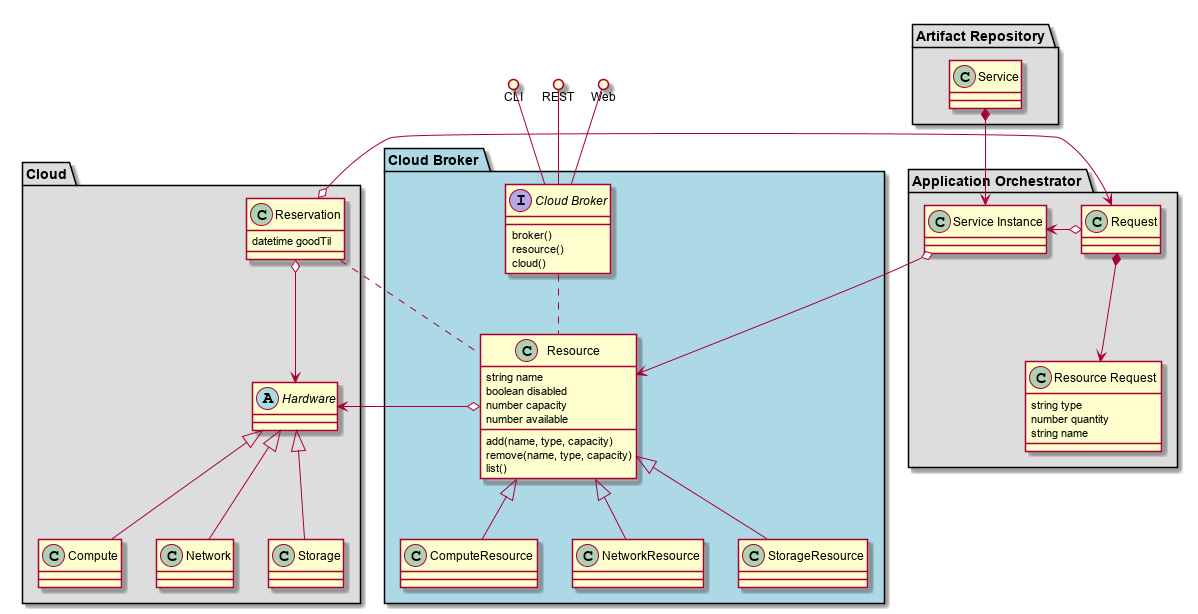

Logical Artifacts

  • Resource - Virtual Representation of the hardware. This can be a VM, Bare metal, or container.
  • Cloud - SDI Cloud that is connected to the data center
  • Request - Request tied to a Service Instance. This is sent to the Cloud to request resources. The cloud in response is a reservation.
  • Resource Request - Each request has 1..n Resource Requests. This could be compute, network, storage or accelerator.
  • Reservation - This is the response to a request.
../../_images/Logical4.png

Activities and Flows

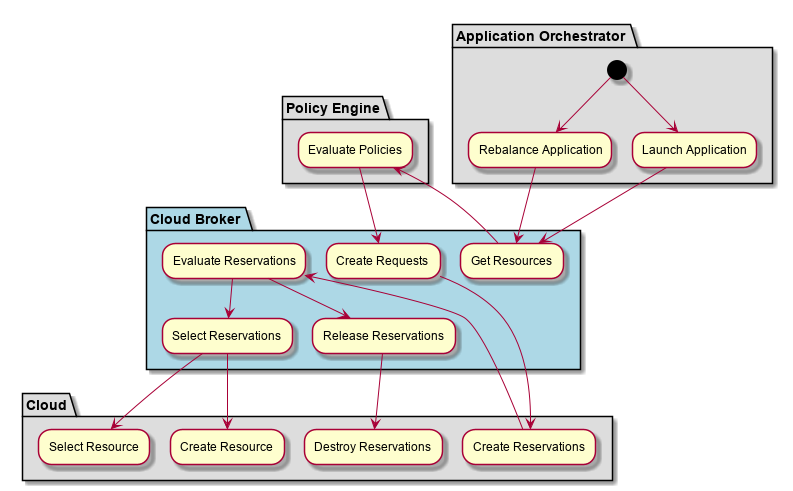

When an application is launched or rebalanced the Cloud broker takes the reguest of requirements for the service graph, and then evaluates the policies across the service graph, environment, and clouds. Then the Cloud Broker sends requests to each Cloud in the form of a resource requests which Service Instances with Resource Requests. Each request is sent to the individual request. In repsonse a reservation is returned from the cloud. A reservation has a “good til” time on it. Each Cloud will return a set of reservations that can be used to satisfy the request requirements. A set of reservations is then selected by the cloud broker and the rest or released/destroyed. Then a set of resources are then mapped to the reservations and the Service Instances are mapped to the resources.

../../_images/Process4.png

Deployment Architecture

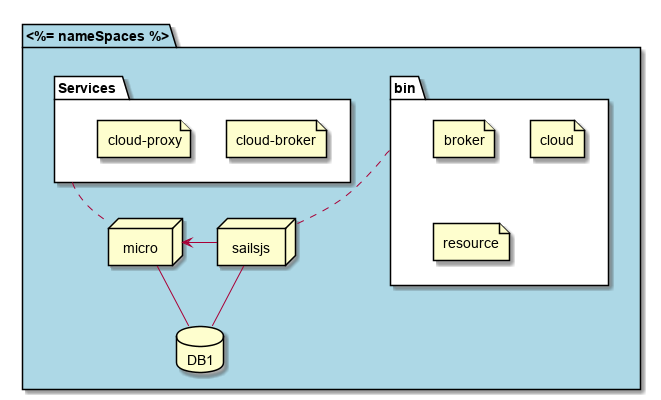

This subsystem is deployed using micro-services as shown in the diagram below. The ‘micro’ module is used to implement the micro-services in the system. The subsystem also has an CLI, REST and Web Interface exposed through a sailajs application. The sailsjs application will interface with the micro-services and can monitor and drive work-flows through the mesh of micro-services.

../../_images/Deployment4.png

Physical Architecture

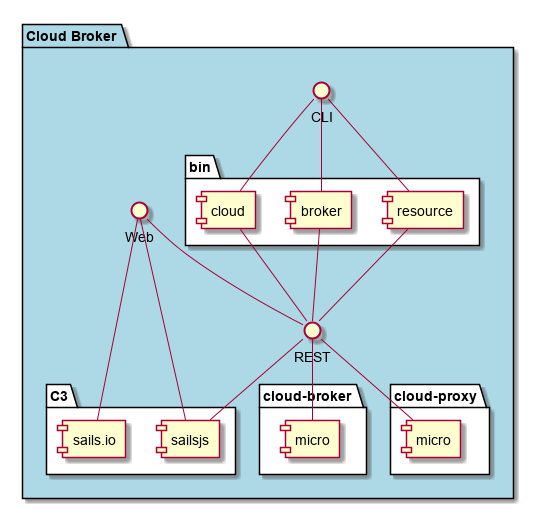

The Cloud Broker subsystem is is physically laid out on a hybrid cloud infrastructure. Each microservice is shown how they connect to each other. All of the micro-services communicate to each other and the main app through a REST interface. A CLI, REST or Web interface for the app is how other subsystems or actors interact. Requests are forwarded to micro-services through the REST interface of each micro-service.

../../_images/Physical4.png
