Telemetry

Telemetry is a subsystem of c3 …

Use Cases

../../_images/UseCases21.png

Uses

  • Application
  • Cloud

Interface

  • CLI - Command Line Interface
  • REST-API -
  • Portal - Web Portal

Logical Artifacts

../../_images/Logical18.png

Activities and Flows

../../_images/Process18.png

Deployment Architecture

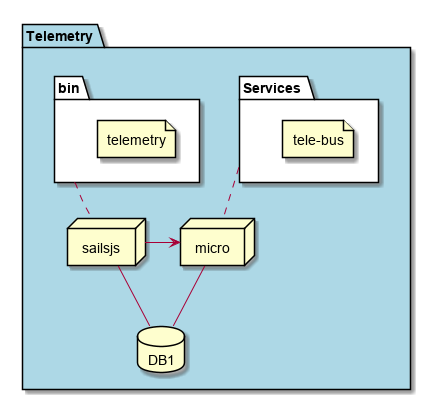

This subsystem is deployed using micro-services as shown in the diagram below. The ‘micro’ module is used to implement the micro-services in the system. The subsystem also has an CLI, REST and Web Interface exposed through a sailajs application. The sailsjs application will interface with the micro-services and can monitor and drive work-flows through the mesh of micro-services.

../../_images/Deployment18.png

Physical Architecture

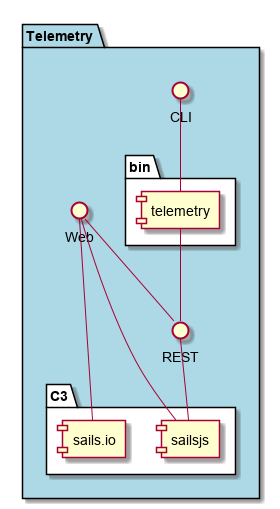

The Telemetry subsystem is is physically laid out on a hybrid cloud infrastructure. Each microservice is shown how they connect to each other. All of the micro-services communicate to each other and the main app through a REST interface. A CLI, REST or Web interface for the app is how other subsystems or actors interact. Requests are forwarded to micro-services through the REST interface of each micro-service.

../../_images/Physical18.png
